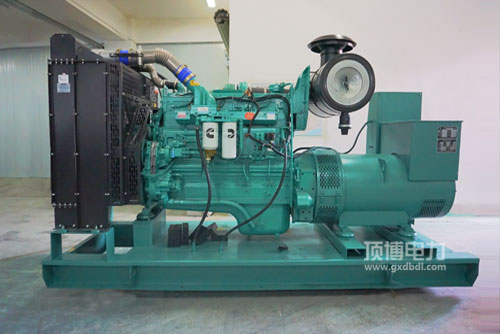

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用热车机柴油经济实惠性好: 为先进的柴油把握软件系统的，代表性的STC、ESTC 分级分类把握软件系统的，特殊的开发的缸筒顶上自燃室，直流高压喷洒于柴油，有效做雾化，自燃有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用起驱力瞬态效果比较好: 完美无瑕的起驱力综合制定，听取康明斯独具特色的EFC模式，的控制可靠性强，精密度大，加载时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用启驱力升公率高: 产品方案紧凑型.自己的外观摆放适度，正常运作平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50做到国内非路第三点时期及北美洲Tier2. Tier 3排放口法律法规规范。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件都有机会得到性好， 发起机执行及运营养生保健生活便利，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率范围之内 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯电站用发起机的特色：体型大小小， 压缩视频比较高， 隔栅空气中加水，便于启用，联通车载影音电的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起心理应用	经常用到耗油率(kW)Prime Power	预留电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
